colorPicker

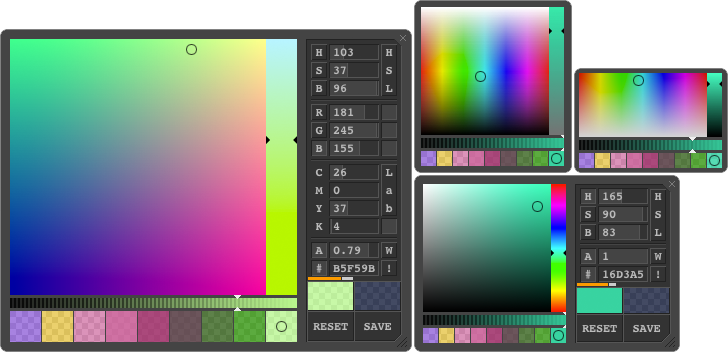

An advanced, fast but small javaScript (only) color picker (color chooser for desktop use) that uses only one .js file (no extra HTML, CSS, images, etc... on IE9+ and internet browsers), works though in all browsers incl. IE6+ (an extra CSS has to be made to make it work in IE6 though and some additional setTimeout tricks to make it work in IE5.5)
colorPicker.js uses colors.js, a small but comprehensive tool for color conversions / calculations...
With colors.js (~8.7k or way smaller if other color spaces and complex calculations are taken out...) you can also build your own simpler and / or smaller color pickers quite easy as demonstrated on the demo page.
colors.js can convert 182 different combinations of color spaces (rgb2HSV, RGB2hsl, rgb2RGB, HEX2Lab, ...)
##Demo See demo at dematte.at/cpn

All the W3C 2.0 calculations for readability are also based on opacity levels of all layers
Supported color spaces are: (* also displayed as colors in realtime)
rgb *, hsv(b) *, hsl *, cmyk, cmy, Lab, XYZ, HEX
##colors.js
var myColors = new Colors({ // all options have a default value...
color: 'rgba(204, 82, 37, 0.8)', // initial color (#RGB, RGB, #RRGGBB, RRGGBB, rgb(r, g, b), ...)
XYZMatrix: ..., // Observer = 2° (CIE 1931), Illuminant = D65 --- see source for dedtails
XYZReference: ..., // back reference to XYZMatrix --- see source for dedtails
grey: {r: 0.298954, g: 0.586434, b: 0.114612}, // CIE-XYZ 1931
luminance: {r: 0.2126, g: 0.7152, b: 0.0722}, // W3C 2.0
valueRanges: {rgb: {r: [0, 255], g: [0, 255], b: [0, 255]}, hsv:...}, // skip ranges if no conversion required
customBG: '#808080' // the solid bgColor behind the chosen bgColor (saved color)
convertCallback: function(colors, type){}, // callback function after color convertion for further calculations...
allMixDetails: false // if set to true, Colors deliveres some more mixed layer informations for all color layers
});
##colorPicker.js
colorPicker uses an instance of Colors and passes the options to it, so some values are the same...
var myColorPicker = new ColorPicker({
color: ..., // see Colors...
mode: 'rgb-b', // initial mode the color picker is starting with
fps: 60, // the framerate colorPicker refreshes the display if no 'requestAnimationFrame'
delayOffset: 8, // pixels offset when shifting mouse up/down inside input fields before it starts acting as slider
CSSPrefix: 'cp-', // the standard prefix for (almost) all class declarations (HTML, CSS)
size: 0, // one of the 4 sizes: 0 = L (large), 1 = S, 2 = XS, 3 = XXS; resize to see what happens...
allMixDetails: true, // see Colors...
alphaBG: 'w' // initial 3rd layer bgColor (w = white, c = custom (customBG), b = black);
customBG: '#808080' // see Colors...
noAlpha: true, // disable alpha input (all sliders are gone and current alpha therefore locked)
cmyOnly: false, // display CMY instead of CMYK
memoryColors: [{r: 100, g: 200, b: 10, a: 0.8}, ...] // array of colors in memory section
opacityPositionRelative: undefined, // render opacity slider arrows in px or %
customCSS: undefined, // if external stylesheet, internal will be ignored...
appenTo: document.body, // the HTMLElement the colorPicker will be appended to on initialization
noRangeBackground: false, // performance option: doesn't render backgrounds in input fields if set to false
textRight: false, // not supported yet. Make numbers appear aligned right
noHexButton: false, // button next to HEX input could be used for some trigger...
noResize: false, // enable / disable resizing of colorPicker
noRGBr: false, // active / passive button right to RGB-R display. Disables rendering of 'real' color possibilities...
noRGBg: false, // same as above
noRGBb: false, // same as above
CSSStrength: 'div.', // not in use
XYZMatrix: ..., // see Colors...
XYZReference: ..., // see Colors...
grey: ..., // see Colors...
luminance: ..., // see Colors...
devPicker: false // uses existing HTML instead of internal template for developing
renderCallback: // function(colors, mode){}, // callback on after rendering (for further rendering outside colorPicker)
actionCallback: function(e, action){}, // callback on any action within colorPicker (buttons, sliders, ...)
convertCallback: function(colors, type){}, // see Colors...
});
##The color model, the methods and more
After initializing Color or ColorPicker you'll get a clean but rhich model of the instance:
myColors: {
colors: { all kinds of color values... see late},
options: { all the options you set or that are set as default... },
__proto__: { // all methods Color uses
setColor: function(newCol, type, alpha) {},
getColor: function(type) {},
setCustomBackground: function(col) {},
saveAsBackground: function() {},
convertColor: function(color, type) {} // converts 182 different combinations
}
}
myColorPicker: {
color: { // instance of Color inside colorPicker
colors: { all kinds of color values... see later},
options: { all the options you set or that are set as default... },
__proto__: { all methods Color uses ... }
},
nodes: { all kinds of cashed nodes, textNodes and styles, etc... },
__proto__: { // all methods ColorPicker uses
setColor: function(newCol, type, alpha, forceRender) {},
startRender: function(oneTime) {},
stopRender: function() {},
setCustomBackground: function(col) {},
saveAsBackground: function() {},
setMode: function(mode) {},
destroyAll: function() {}
}
}
The klass ColorPicker has some functions attached, used inside, exported for convenience...
ColorPicker.addEvent = function(obj, type, func){}; // with built in cashe
ColorPicker.removeEvent = function(obj, type, func){};
ColorPicker.getOrigin = function(elm){};
ColorPicker.limitValue = function(value, min, max){};
ColorPicker.changeClass = function(elm, cln, newCln){}; // a bit tricky to use...
If allMixDetails
in options is set to true you'll get the following color model
HEX: "CC5225"
HUELuminance: 0.2551624375341642
Lab:
L: 50.69829294450699
a: 46.211447715607754
b: 48.89440661211546
RGBLuminance: 0.19005527463028907
RND:
Lab:
L: 51
a: 46
b: 49
XYZ:
X: 28
Y: 19
Z: 4
cmy:
c: 20
m: 68
y: 85
cmyk:
c: 0
k: 20
m: 60
y: 82
hsl:
h: 16
l: 47
s: 69
hsv:
h: 16
s: 82
v: 80
rgb:
b: 37
g: 82
r: 204
XYZ:
X: 0.28256150053199897
Y: 0.1900947979548766
Z: 0.03931214183196716
alpha: 0.8
background:
RGB:
b: 37
g: 82
r: 204
alpha: 0.8
equivalentGrey: 113
rgb:
b: 0.1450980392156863
g: 0.3215686274509804
r: 0.8
rgbaMixBlack:
a: 1
b: 0.11607843137254903
g: 0.2572549019607843
luminance: 0.11749216636078468
r: 0.6400000000000001
rgbaMixCustom:
a: 1
b: 0.2164705882352941
g: 0.35764705882352943
luminance: 0.18587426449997613
r: 0.7403921568627452
rgbaMixWhite:
a: 1
b: 0.316078431372549
g: 0.4572549019607843
luminance: 0.2754391314146436
r: 0.8400000000000001
cmy:
c: 0.19999999999999996
m: 0.6784313725490196
y: 0.8549019607843137
cmyk:
c: 0
k: 0.19999999999999996
m: 0.5980392156862746
y: 0.8186274509803921
equivalentGrey: 0.4443719529411765
hsl:
h: 0.04491017964071856
l: 0.4725490196078432
s: 0.6929460580912863
hsv:
h: 0.04491017964071856
s: 0.8186274509803921
v: 0.8
hueRGB:
b: 0
g: 69
r: 255
rgb:
b: 0.1450980392156863
g: 0.3215686274509804
r: 0.8
rgbaMixBG:
a: 0.96
b: 0.1450980392156863
g: 0.3215686274509804
luminance: 0.19005527463028912
r: 0.8000000000000002
rgbaMixBGMixBlack:
WCAG2Ratio: 1.34
a: 1
b: 0.13929411764705882
g: 0.30870588235294116
hueDelta: 0.06755555555555555
luminance: 0.17390431940250664
luminanceDelta: 0.056412153041721966
r: 0.7680000000000001
rgbaMixBGMixCustom:
WCAG2Ratio: 1.01
a: 1
b: 0.15937254901960785
g: 0.3287843137254902
hueDelta: 0.044549019607843125
luminance: 0.1888539436392117
luminanceDelta: 0.0029796791392355804
r: 0.7880784313725491
rgbaMixBGMixWhite:
WCAG2Ratio: 1.28
a: 1
b: 0.17929411764705883
g: 0.34870588235294114
hueDelta: 0.09244444444444444
luminance: 0.20454042294912048
luminanceDelta: 0.07089870846552312
r: 0.808
rgbaMixBlack:
WCAG2Ratio: 3.35
a: 1
b: 0.11607843137254903
g: 0.2572549019607843
luminance: 0.11749216636078468
r: 0.6400000000000001
rgbaMixCustom:
WCAG2Ratio: 1.13
a: 1
b: 0.2164705882352941
g: 0.35764705882352943
luminance: 0.18587426449997613
r: 0.7403921568627452
rgbaMixWhite:
WCAG2Ratio: 3.23
a: 1
b: 0.316078431372549
g: 0.4572549019607843
luminance: 0.2754391314146436
r: 0.8400000000000001
saveColor: ""
webSave: Object
b: 51
g: 102
r: 204
webSmart:
b: 34
g: 85
r: 204
