colorPicker
An advanced, fast but small javaScript (only) color picker (color chooser for desktop use) that uses only one .js file (no extra HTML, CSS, images, etc... on IE9+ and internet browsers), works though in all browsers incl. IE6+ (an extra CSS has to be made to make it work in IE6 though and some additional setTimeout tricks to make it work in IE5.5)
colorPicker.js uses colors.js, a small but comprehensive tool for color conversions / calculations...
With colors.js (~8.7k or way smaller if other color spaces and complex calculations are taken out...) you can also build your own simpler and / or smaller color pickers quite easy as demonstrated on the demo page.
colors.js can convert 182 different combinations of color spaces (rgb2HSV, RGB2hsl, rgb2RGB, HEX2Lab, ...)
##Demo See demo at dematte.at/cpn
All the W3C 2.0 calculations for readability are also based on opacity levels of all layers
Supported color spaces are: (* also displayed as colors in realtime)
rgb *, hsv(b) *, hsl *, cmyk, cmy, Lab, XYZ, HEX
##colors.js
var myColors = new Colors({ // all options have a default value...
color: 'rgba(204, 82, 37, 0.8)', // initial color (#RGB, RGB, #RRGGBB, RRGGBB, rgb(r, g, b), ...)
XYZMatrix: ..., // Observer = 2° (CIE 1931), Illuminant = D65 --- see source for dedtails
XYZReference: ..., // back reference to XYZMatrix --- see source for dedtails
grey: {r: 0.298954, g: 0.586434, b: 0.114612}, // CIE-XYZ 1931
luminance: {r: 0.2126, g: 0.7152, b: 0.0722}, // W3C 2.0
valueRanges: {rgb: {r: [0, 255], g: [0, 255], b: [0, 255]}, hsv:...}, // skip ranges if no conversion required
customBG: '#808080' // the solid bgColor behind the chosen bgColor (saved color)
convertCallback: function(colors, type){}, // callback function after color convertion for further calculations...
allMixDetails: false // if set to true, Colors deliveres some more mixed layer informations for all color layers
});
##colorPicker.js
colorPicker uses an instance of Colors and passes the options to it, so some values are the same...
var myColorPicker = new ColorPicker({
color: ..., // see Colors...
mode: 'rgb-b', // initial mode the color picker is starting with
fps: 60, // the framerate colorPicker refreshes the display if no 'requestAnimationFrame'
delayOffset: 8, // pixels offset when shifting mouse up/down inside input fields before it starts acting as slider
CSSPrefix: 'cp-', // the standard prefix for (almost) all class declarations (HTML, CSS)

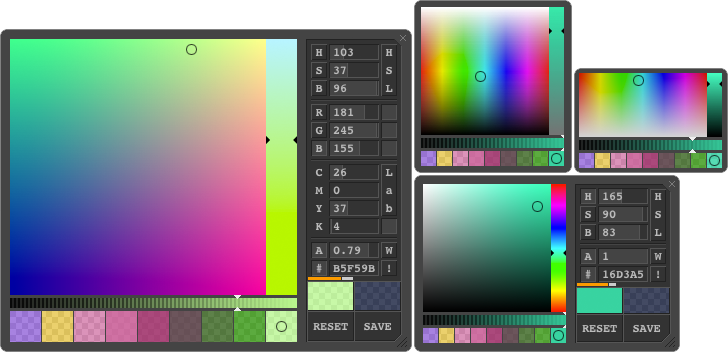

size: 0, // one of the 4 sizes: 0 = L (large), 1 = S, 2 = XS, 3 = XXS; resize to see what happens...
allMixDetails: true, // see Colors...
alphaBG: 'w' // initial 3rd layer bgColor (w = white, c = custom (customBG), b = black);
customBG: '#808080' // see Colors...
noAlpha: true, // disable alpha input (all sliders are gone and current alpha therefore locked)
cmyOnly: false, // display CMY instead of CMYK
memoryColors: [{r: 100, g: 200, b: 10, a: 0.8}, ...] // array of colors in memory section
opacityPositionRelative: undefined, // render opacity slider arrows in px or %
customCSS: undefined, // if external stylesheet, internal will be ignored...
appenTo: document.body, // the HTMLElement the colorPicker will be appended to on initialization
noRangeBackground: false, // performance option: doesn't render backgrounds in input fields if set to false
textRight: false, // not supported yet. Make numbers appear aligned right
noHexButton: false, // button next to HEX input could be used for some trigger...
noResize: false, // enable / disable resizing of colorPicker
noRGBr: false, // active / passive button right to RGB-R display. Disables rendering of 'real' color possibilities...
noRGBg: false, // same as above
noRGBb: false, // same as above
CSSStrength: 'div.', // not in use
XYZMatrix: ..., // see Colors...
XYZReference: ..., // see Colors...
grey: ..., // see Colors...
luminance: ..., // see Colors...
devPicker: false // uses existing HTML instead of internal template for developing
renderCallback: // function(colors, mode){}, // callback on after rendering (for further rendering outside colorPicker)
actionCallback: function(e, action){}, // callback on any action within colorPicker (buttons, sliders, ...)
convertCallback: function(colors, type){}, // see Colors...
});
##The color model, the methods and more
After initializing Color or ColorPicker you'll get a clean but rhich model of the instance:
myColors: {
colors: { all kinds of color values... see late},
options: { all the options you set or that are set as default... },
__proto__: { // all methods Color uses
setColor: function(newCol, type, alpha) {},
getColor: function(type) {},
setCustomBackground: function(col) {},
saveAsBackground: function() {},
convertColor: function(color, type) {} // converts 182 different combinations
}
}
myColorPicker: {
color: { // instance of Color inside colorPicker
colors: { all kinds of color values... see later},
options: { all the options you set or that are set as default... },
__proto__: { all methods Color uses ... }
},
nodes: { all kinds of cashed nodes, textNodes and styles, etc... },
__proto__: { // all methods ColorPicker uses
setColor: function(newCol, type, alpha, forceRender) {},
startRender: function(oneTime) {},
stopRender: function() {},
setCustomBackground: function(col) {},
saveAsBackground: function() {},
setMode: function(mode) {},
destroyAll: function() {}
}
}
The klass ColorPicker has some functions attached, used inside, exported for convenience...
ColorPicker.addEvent = function(obj, type, func){}; // with built in cashe
ColorPicker.removeEvent = function(obj, type, func){};
ColorPicker.getOrigin = function(elm){};
ColorPicker.limitValue = function(value, min, max){};
ColorPicker.changeClass = function(elm, cln, newCln){}; // a bit tricky to use...
If allMixDetails in options is set to true you'll get the following color model
HEX: "CC5225" // current color as HEX (upper case, 6 digits)
rgb: // current RGB color as normalized values (0 - 1)
r: // red
g: // green
b: // blue
hsv: // current color values in normalized HSV (HSB) model
h: // hue
s: // saturation
v: // value (brightness)
hsl: // current color values in normalized HSL model
h: // hue
s: // saturation
l: // lightness
cmy: // current color values in normalized CMY model
c: // cyan
m: // magenta
y: // yellow
cmyk: // current color values in normalized CMYK model
c: // cyan
m: // magenta
y: // yellow
k: // black
Lab: // current color values in normalized CIE 1976 L* a* b* (or CIELAB) model
L: // lightness
a: // color-opponent dimension
b: // color-opponent dimension
XYZ: // current color values in normalized CIE 1931 XYZ model
X: // mix (a linear combination) of cone response curves (LMS)
Y: // luminance
Z: // quasi-equal to blue stimulation (S)
RND: // all above colors in their defined ranges
rgb: // current RGB color, rounded between 0 and 255
r: // red (0 - 255)
g: // green (0 - 255)
b: // blue (0 - 255)
hsv: // see above
h: // hue (0 - 360 degrees)
s: // saturation (0 - 100 %)
v: // value (brightness) (0 - 100 %)
hsl: // see above
h: // hue (0 - 360 degrees)
s: // saturation (0 - 100 %)
l: // lightness (0 - 100 %)
cmy: // see above
c: // cyan (0 - 100 %)
m: // magenta (0 - 100 %)
y: // yellow (0 - 100 %)
cmyk: // see above
c: // cyan (0 - 100 %)
m: // magenta (0 - 100 %)
y: // yellow (0 - 100 %)
k: // black (0 - 100 %)
Lab: // see above
L: // lightness (0 - 100 %)
a: // color-opponent dimension (-128 - 127)
b: // color-opponent dimension (-128 - 127)
XYZ: // see above (values might be slightly above 100, dependent on matrix)
X: // mix (a linear combination) of cone response curves (LMS) (0 - 100)
Y: // luminance (0 - 100)
Z: // quasi-equal to blue stimulation (S) (0 - 100)
background: // saved (background) color (saveAsBackground(){})
rgb: // color in RGB model
r: // red
g: // green
b: // blue
RGB: // RGB color, rounded between 0 and 255
r: // red (0 - 255)
g: // green (0 - 255)
b: // blue (0 - 255)
alpha: alpha or opacity value (0 - 1)
equivalentGrey: // r = g = b = (0 - 255)
rgbaMixBlack: // saved (background) color mixed with solid black color
r: // red
g: // green
b: // blue
a: // resulting alpha or opacity value (0 - 1)
luminance: // luminance of resulting mix (0 - 1)
rgbaMixCustom: // saved (background) color mixed with custom (solid) color
r: // red
g: // green
b: // blue
a: // resulting alpha or opacity value (0 - 1)
luminance: // luminance of resulting mix (0 - 1)
rgbaMixWhite: // saved (background) color mixed with solid white color
r: // red
g: // green
b: // blue
a: // resulting alpha or opacity value (0 - 1)
luminance: // luminance of resulting mix (0 - 1)
alpha: // alpha or opacity value (0 - 1) of current color
equivalentGrey: // r = g = b = (0 - 1)
HUELuminance: // luminance of hue (in full brightnes and saturation) (0 - 1)
RGBLuminance: // luminance of the current color
hueRGB: // rounded integer value of current color in rgb model with full saturation and brightness
r: // red (0 - 255)
g: // green (0 - 255)
b: // blue (0 - 255)
saveColor: // '' or 'web smart' or 'web save', if so.
webSave: // closest web-save color
r: // red (0 - 255)
g: // green (0 - 255)
b: // blue (0 - 255)
webSmart: // closest web-smart color
r: // red (0 - 255)
g: // green (0 - 255)
b: // blue (0 - 255)
rgbaMixBG: // color mix result: current color above saved (background) color
r: // red (0 - 1)
g: // green (0 - 1)
b: // blue (0 - 1)
a: // resulting alpha or opacity value (0 - 1)
luminance: // luminance of resulting mix (0 - 1)
rgbaMixBGMixBlack: // color mix result: current color above saved (background) color above solid black
r: // red (0 - 1)
g: // green (0 - 1)
b: // blue (0 - 1)
a: // resulting alpha or opacity value (0 - 1)
luminance: // luminance of resulting mix (0 - 1)
luminanceDelta: // luminance difference between current color and resulting saved-black mix (0 - 1)
hueDelta: // hue difference between current color and resulting custom-black mix (0 - 1)
WCAG2Ratio: // readability vale (1 - 21, 1:1 to 21:1)
rgbaMixBGMixCustom: // color mix result: current color above saved (background) color above solid custom color
r: // red (0 - 1)
g: // green (0 - 1)
b: // blue (0 - 1)
a: // resulting alpha or opacity value (0 - 1)
luminance: // luminance of resulting mix (0 - 1)
luminanceDelta: // luminance difference between current color and resulting saved-custom mix (0 - 1)
hueDelta: // hue difference between current color and resulting saved-custom mix (0 - 1)
WCAG2Ratio: // readability vale (1 - 21, 1:1 to 21:1)
rgbaMixBGMixWhite: // color mix result: current color above saved (background) color above solid white
r: // red (0 - 1)
g: // green (0 - 1)
b: // blue (0 - 1)
a: // resulting alpha or opacity value (0 - 1)
luminance: // luminance of resulting mix (0 - 1)
luminanceDelta: // luminance difference between current color and resulting saved-white mix (0 - 1)
hueDelta: // hue difference between current color and resulting saved-white mix (0 - 1)
WCAG2Ratio: // readability vale (1 - 21, 1:1 to 21:1)
rgbaMixBlack: // color mix result: current color above solid black
r: // red (0 - 1)
g: // green (0 - 1)
b: // blue (0 - 1)
a: // resulting alpha or opacity value (0 - 1)
luminance: // luminance of resulting mix (0 - 1)
WCAG2Ratio: // readability vale (1 - 21, 1:1 to 21:1)
rgbaMixCustom: // color mix result: current color above solid custom color
r: // red (0 - 1)
g: // green (0 - 1)
b: // blue (0 - 1)
a: // resulting alpha or opacity value (0 - 1)
luminance: // luminance of resulting mix (0 - 1)
WCAG2Ratio: // readability vale (1 - 21, 1:1 to 21:1)
rgbaMixWhite: // color mix result: current color above solid white
r: // red (0 - 1)
g: // green (0 - 1)
b: // blue (0 - 1)
a: // resulting alpha or opacity value (0 - 1)
luminance: // luminance of resulting mix (0 - 1)
WCAG2Ratio: // readability vale (1 - 21, 1:1 to 21:1)
